65 13 060 Removing and installing/replacing speaker (mid-range speaker, in instrument panel)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

Unclip trim (1) with special tool 00 9 327 from latch mechanisms and remove upwards.

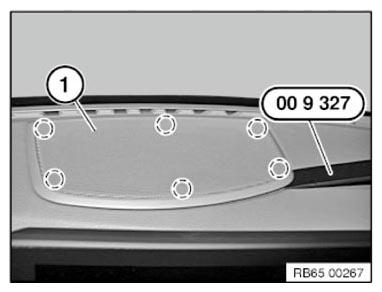

Fig 1: Removing Trim Using Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs and clamps at marked points must not be damaged.

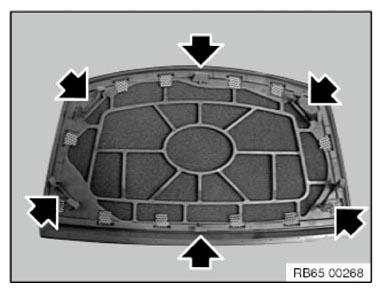

Fig 2: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 65 13 05AZ .

Remove mid-range speaker (2) upwards from dashboard (3).

Disconnect plug connections underneath.

Remove mid-range speaker (2).

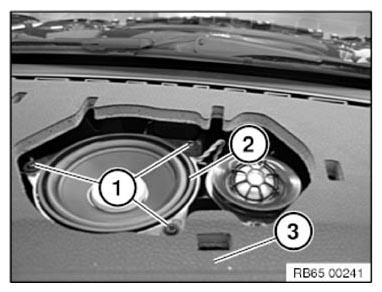

Fig 3: Identifying Mid-Range Speaker Screws

Courtesy of BMW OF NORTH AMERICA, INC.
