65 24 040 Removing and installing/replacing left wave trap

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Open left flap (1).

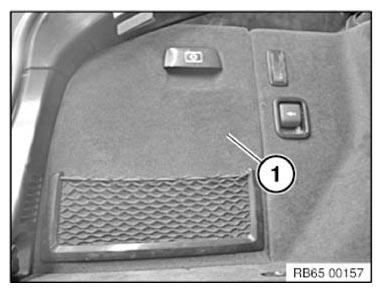

Fig 1: Opening Left Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Lift lock (1) slightly upwards with suitable screwdriver (2).

Pry out multifunction hooks (3) in direction of arrow.

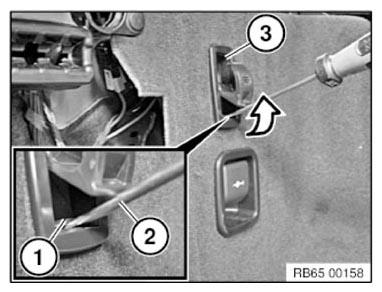

Fig 2: Lifting Lock

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Luggage compartment wheel arch panel shown removed for purposes of clarity.

Unlock plug connections (1) and disconnect.

Release screw (2).

Remove blocking circuit (3).

Installation note:

Position blocking circuit (3) so that positioning pin on back engages in associated bore hole.

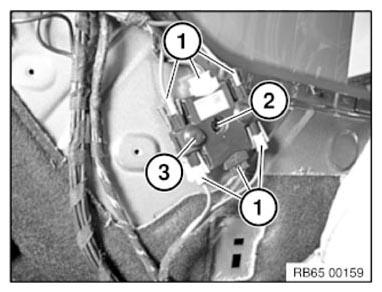

Fig 3: Identifying Blocking Circuit Plug Connections And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
