84 50 565 Replacing Bluetooth cable aerial

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If a Combox is installed, the Bluetooth aerial is in the wiring harness to the Combox.
If the vehicle is equipped with a high equipment headunit, the Bluetooth aerial is located in the wiring harness to the high equipment headunit.

Bluetooth cable aerial installation location (E61) when Combox is installed.

Remove backrest side section

Remove rear left door sill cover strip.

Reposition underbody panelling on the left side.

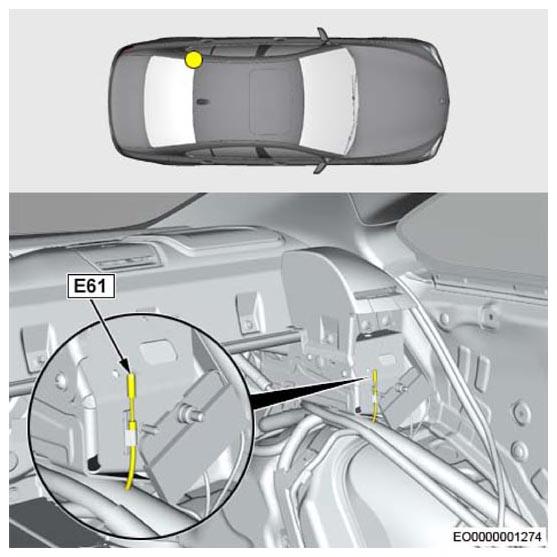

Fig 1: Bluetooth Cable Aerial Installation Location

G10099288

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection of Bluetooth cable aerial (2) at Combox (1).

Secure Bluetooth cable aerial (2) repair kit at wiring harness for entrance, and close plug connection (1).

After successful completion of functional check, disconnect start and end of faulty Bluetooth cable aerial at first mounting point.

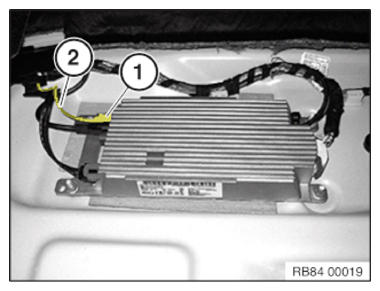

Fig 2: Identifying Bluetooth Cable Aerial Plug Connection And Combox

G09930024

Courtesy of BMW OF NORTH AMERICA, INC.

Installation location of the Bluetooth cable aerial (E61) on vehicles with NBT/HU.

Remove Headunit High or Headunit.

Partially remove center console.

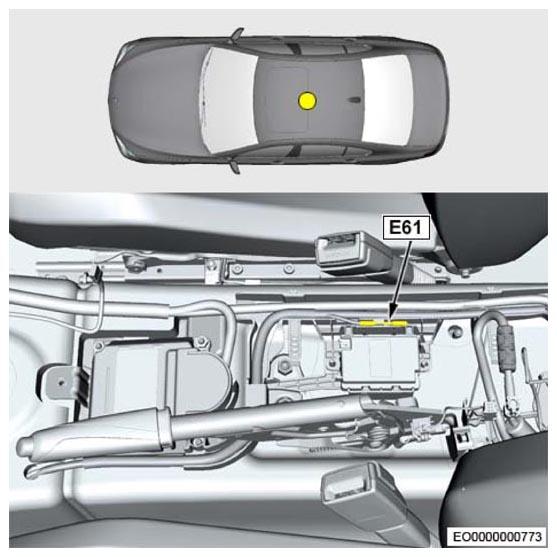

Fig 3: Vehicle Bluetooth Cable Aerial Installation Location

G10099290

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connection of Bluetooth cable aerial (1).

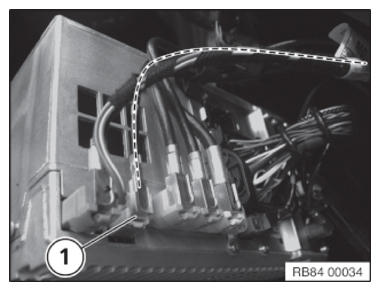

Fig 4: Identifying Bluetooth Cable Aerial Plug Connection

G09930027

Courtesy of BMW OF NORTH AMERICA, INC.

Secure Bluetooth cable aerial (1) repair kit at wiring harness below center console (2), and close plug connection.

After successful completion of functional check, disconnect start and end of faulty Bluetooth cable aerial at first mounting point.

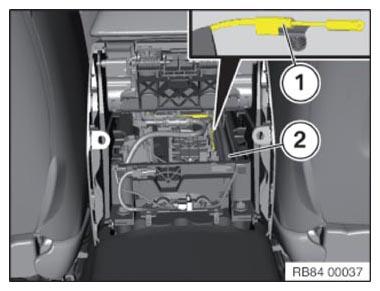

Fig 5: Identifying Center Console And Bluetooth Cable Aerial

G10099292

Courtesy of BMW OF NORTH AMERICA, INC.
