34 41... Removing and installing or replacing gaiter for handbrake lever
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

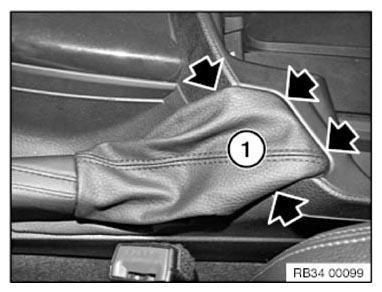

Unclip gaiter (1), top, with special tool 00 9 317 , if applicable.
Installation note:
First insert the gaiter (1) on the bottom and then clip in on the top.

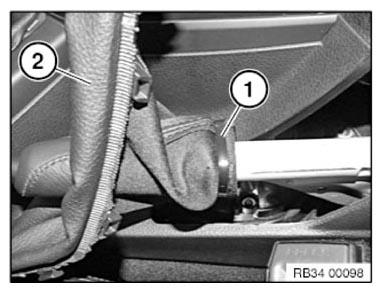

Pull gaiter (2) over parking brake lever.
Cut cable ties (1) and remove gaiter.
Installation note:
Eye of cable tie must face downward
