34 11 280 Removing and installing/replacing front left protective plate
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove front BRAKE DISCS .

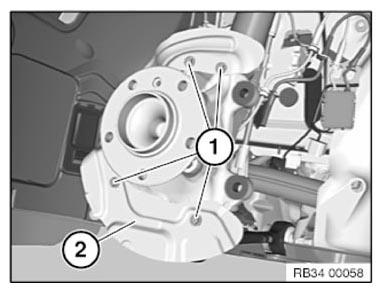

Release screws (1) and remove brake guard plate (2).
Installation note:
Tightening torque: 34 11 3AZ .
