34 35 003 Replacing a brake pad sensor (rear)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.

Necessary preliminary tasks:

Remove rear right wheel

Slacken nut (1).

Pull wheel arch trim (2) gently to one side.

Disengage cable from holders (3).

Fig 1: Identifying Wheel Arch Trim, Nut And Holders

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Installation note:

Ensure proper locking of the plug connector and proper seating of the cable in the brackets.

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage cable from holders (1).

Detach brake pad wear sensor (2) in direction of arrow from brake pad.

Installation note:

Make sure holders (1) and brake pad wear sensor (2) are correctly seated in brake caliper.

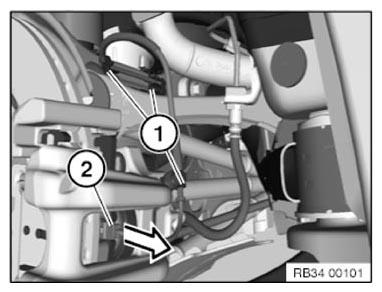

Fig 3: Detaching Brake Pad Wear Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
