34 35 001 Replacing a brake pad sensor (front)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.
If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.
Necessary preliminary tasks:
- Remove WHEEL

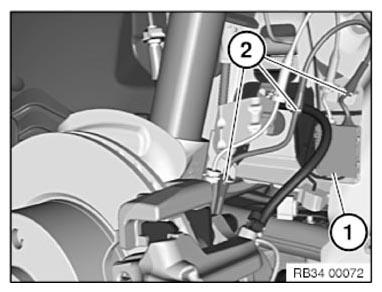

Fold the connector housing (1) up and disconnect the plug connection.
Detach the brake pad wear sensor from the brackets (2).
Installation note:
Do not route/fix the brake pad wear sensor cable via the dust cap of the brake ventilation valve!
Press clamps (1) together and pull brake pad wear sensor (2) from brake pad (3) in direction of arrow.
Installation note:
Make sure clamps (1) and brake pad wear sensor (2) are correctly seated in brake pad (3).
