63 21 260 Removing and installing (replacing) left, rear light (on side wall)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Release catches (1).

Feed out cover (2) from rear light.

Installation note:

Make sure cover (2) is correctly seated.

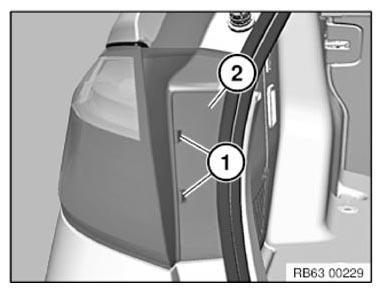

Fig 1: Identifying Rear Light Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 63 21 1AZ .

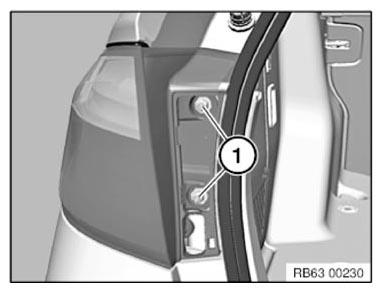

Fig 2: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of paint damage!

Tape off entire area (1) with yellow plastic adhesive tape.

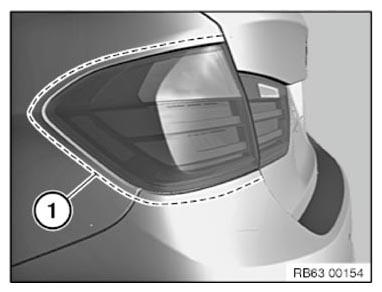

Fig 3: Identifying Yellow Plastic Adhesive Tape Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The rear light is secured in the body with a latch!
In the interests of avoiding damage to the rear light and the paintwork the following text describes how to release the latch.

NOTE: Similar to graphic.

Detach the rear light (2) in direction of arrow from the latch mechanism (1).

Unlock associated plug connection and disconnect.

Remove rear light (2).

Installation note:

Make sure that rear light (2) is correctly locked.

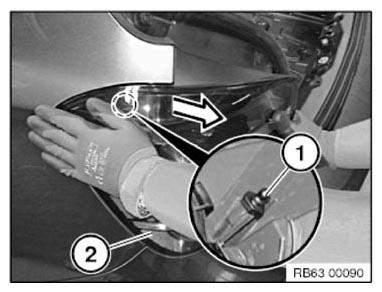

Fig 4: Releasing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch (1) must not be missing or damaged.

Guide (2) and seal (3) must not be damaged or missing.

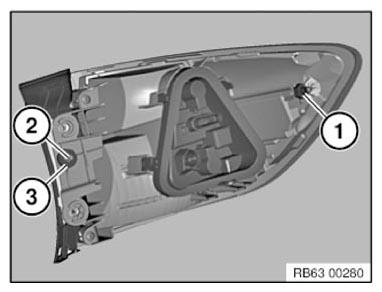

Fig 5: Identifying Latch, Guide And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Convert BULBS if necessary.

Note BULB TYPE .
