63 21 035 Removing and installing/replacing left socket housing for rear light (on tailgate)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Remove service cap (1) from tailgate trim panel (2) in direction of arrow.

Installation note:

Ensure that service cap (1) is correctly seated on tailgate trim panel (2).

Fig 1: Removing Service Cap From Tailgate Trim Panel

G10168290

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanism (1) and guides (2) on service cap (3) must not be missing or damaged.

Fig 2: Identifying Latch Mechanism And Guides On Service Cap

G10168291

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Unfasten plug connection (1) and disconnect.

Unlock latches (2) and remove socket housing (3) from rear light (4).

Installation note:

Make sure plug connection (1) is correctly seated.

Catches (2) must not be damaged or missing.

Make sure socket housing (3) is correctly seated on rear light (4).

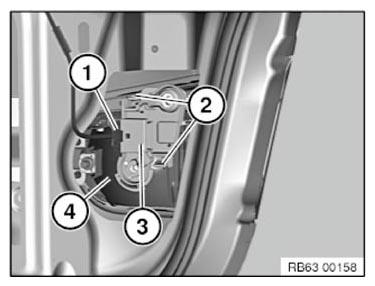

Fig 3: Identifying Rear Light, Socket Housing And Plug Connection

G10098765

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carefully press down bulb (1) into socket housing (2), turn in direction of arrow and remove from socket housing (2).

Note BULB TYPE .

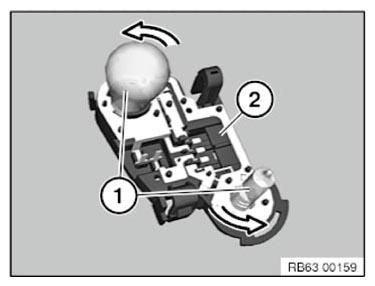

Fig 4: Turning Bulb Into Socket Housing

G10098766

Courtesy of BMW OF NORTH AMERICA, INC.
