63 99 432 Replacing bulb for interior roof light (rear)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (INTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove REAR INTERIOR ROOF LIGHT

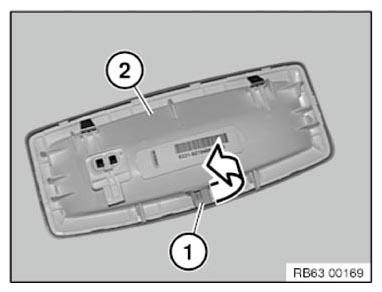

Turn bulb holder (1) in direction of arrow and pull out of interior roof light (2).

Fig 1: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bulb (1) from bulb holder (2) in direction of arrow.

Installation note:

Note BULB TYPE .

Fig 2: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
