63 99 110 Replacing bulb for daytime driving lights, left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.

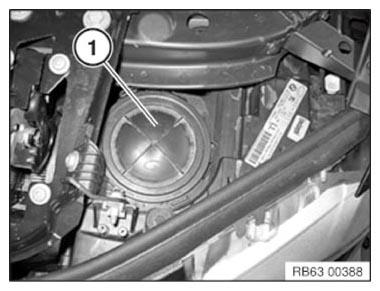

Turn protective cap (1) counterclockwise and remove.

Fig 1: Turning Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage due to moisture penetration!
Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Protective cap (1) must lock correctly!
Turn protective cap (1) clockwise to limit position.

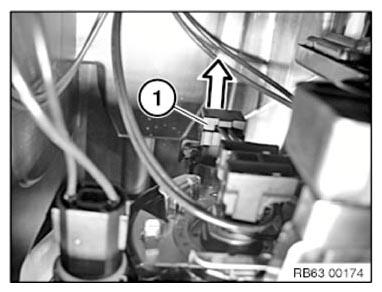

Pull back bulb holder (1) in direction of arrow out of headlight.

Installation note:

Make sure bulb holder (1) is exactly seated in headlight.

Fig 2: Pulling Back Bulb Holder Of Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

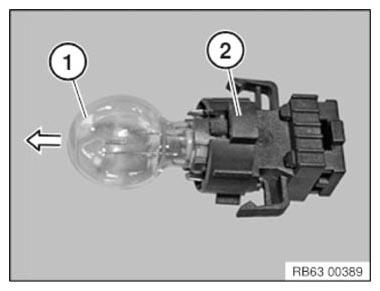

Pull bulb for daytime driving lights (1) out of bulb socket (2).

Installation note:

Note BULB TYPE .

Fig 3: Pulling Daytime Driving Lights Bulb Out Of Bulb Socket

Courtesy of BMW OF NORTH AMERICA, INC.
