63 31 187 Removing and installing/replacing LED for left or right door post trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Partially remove TRIM PANEL FOR TOP OF DOOR POST

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.

Unlock and disconnect plug connection (1) on door post.

Lever out cable at cable clip (2) from door post.

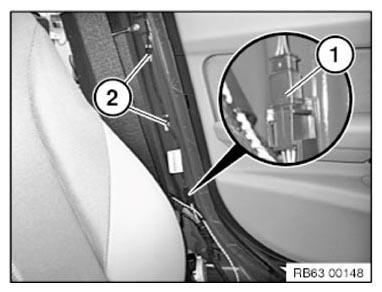

Fig 1: Identifying Plug Connection On Door Post

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.
Graphic shows trim panel (3) removed.

Carefully lever out LED module (1) from holder (2) with a suitable tool.

Lever out cable at cable clip (4) from trim panel (3) and remove LED module (1).

Installation note:

Make sure LED module (1) is correctly fitted in holder (2).

Cable clips (4) must not be missing or damaged.

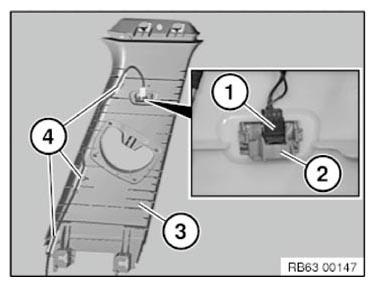

Fig 2: Identifying LED Module And Cable Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure correct cable routing.
