63 31 170 Removing and installing/replacing door handle light on left or right front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front support for outer door handle . See 51 21 126 REMOVING AND INSTALLING/REPLACING SUPPORT FOR LEFT OR RIGHT OUTER DOOR HANDLE WITHOUT LOCK BARREL or 51 21 125 REMOVING AND INSTALLING/REPLACING SUPPORT FOR LEFT OR RIGHT OUTER DOOR HANDLE WITH LOCK BARREL

NOTE: Graphic shown on the F30 by way of example

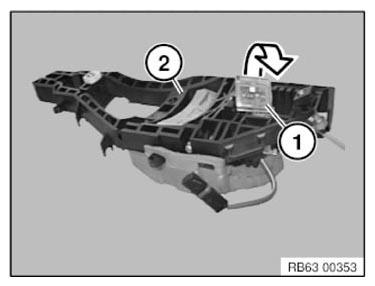

Feed out outside door handle light (1) with cable from support for outer door handle (2).

Fig 1: Removing Front Support For Outer Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

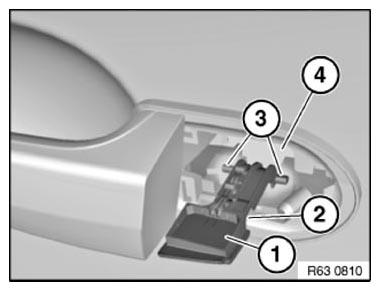

Make sure door handle light (1) is correctly positioned in area (2).

Guides (3) of door handle light (1) must be seated in support for outer door handle (4).

Fig 2: Identifying Door Handle Light And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
