63 31 020 Removing and installing/renewing footwell light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

Footwell, left/right:

Lever footwell light (1) in direction of arrow out of trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Fig 1: Removing Footwell Light

G04768792

Courtesy of BMW OF NORTH AMERICA, INC.

Door, left/right:

Lever footwell light (1) in direction of arrow out of door trim panel (2).

Disconnect plug connection behind and remove footwell light (1).

Replacement:

If necessary, remove bulb, note BULB TYPE

The footwell light in LED technology must be completely replaced!

Fig 2: Removing Footwell Light From Door Trim

G04727755

Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb holder (1) in direction of arrow and pull out of footwell light (2).

Installation note:

Make sure bulb holder (1) is correctly seated and latched on footwell light (2).

Fig 3: Turning Bulb Holder

G04792557

Courtesy of BMW OF NORTH AMERICA, INC.

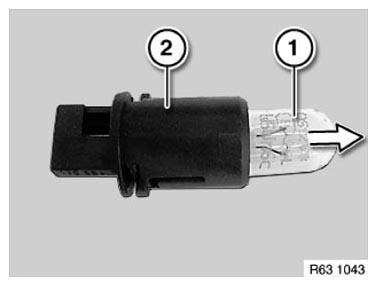

Pull bulb (1) in direction of arrow out of bulb holder (2).

Fig 4: Pulling Bulb Of Holder

G10168314

Courtesy of BMW OF NORTH AMERICA, INC.
