63 12 860 Replacing control unit for left xenon headlight

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon lighting system: Danger to life due to high voltage! Disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.
Comply with notes and notes on handling EXTERIOR LIGHTS .

IMPORTANT: Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE !

Necessary preliminary tasks:

Remove LEFT HEADLIGHT

NOTE: Graphics shown on the F30 by way of example, deviations in detail are possible in other models.

Release screws (1).

Tightening torque 63 12 3AZ .

Remove control unit for xenon headlight (2) upwards from headlight (3).

Fig 1: Identifying Xenon Headlight Control Unit And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

When installing control unit for xenon headlight (1), make sure gasket (2) is correctly seated.

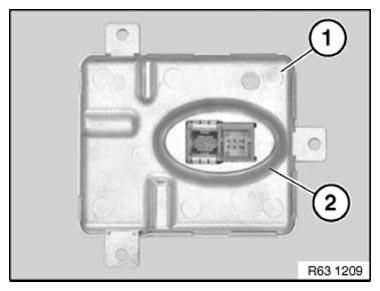

Fig 2: Identifying Xenon Headlight Control Unit And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
