63 14 120 Removing and installing/replacing rear reflector (until 05/2013)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

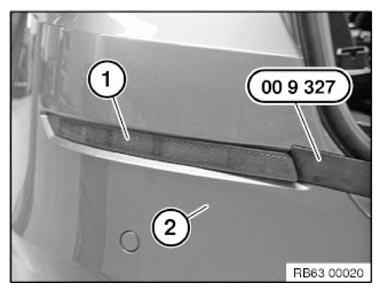

Fig 1: Removing Rear Reflector On Right Side Using Special Tool (00 9 327)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Work shown on the F30 by way of example, deviations in detail are possible in other models.

Carefully unclip rear reflector (1) on the right side using special tool 00 9 327 .

Remove rear reflector (1) toward the rear from bumper panel (2).

Installation note:

Retaining lugs (1) must not be damaged.

Make sure rear reflector (2) is correctly seated.

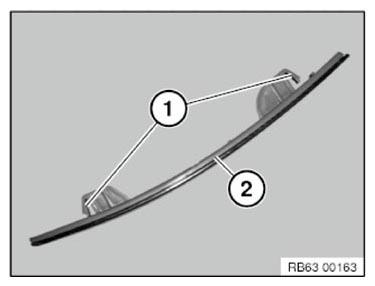

Fig 2: Identifying Rear Reflector And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
