66 33 010 Removing and installing/replacing ultrasonic sensors for Parking Manoeuvring Assistant
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Partially remove WHEEL ARCH COVER, FRONT LEFT OR RIGHT

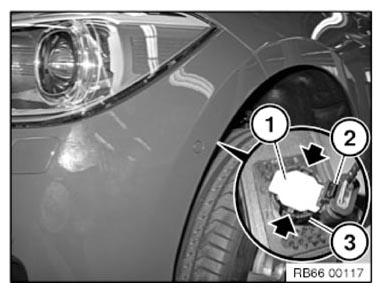

Unfasten plug connection (2) and disconnect.
Unlock latch mechanisms where marked and pull ultrasonic sensor (1) out of bracket (3).
Installation note:
Latch mechanisms must not be damaged!
Make sure ultrasonic sensor is seated securely!
