66 33 008 Removing and installing/replacing of the Parking Manoeuvring Assistant control unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove LUGGAGE COMPARTMENT TRIM PANEL ON SIDE WALL RIGHT

Unlock plug connections (1) and disconnect.

Unlock latches at marked points.

Pull out the Parking Manoeuvring Assistant control unit (2).

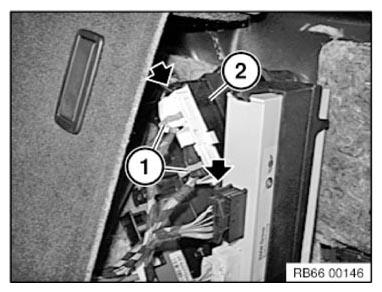

Fig 1: Locating Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
