54 10 170 Removing and installing front glass slide/tilt sunroof panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following steps can be carried out in passenger compartment with the glass roof panel fully closed.
Open floating roofliner fully.
Make sure that grease at the ends of the rail do not come into contact with the roofliner.
Not necessary for replacement:
Before removing the Torx screws, make a mark around the washer in order to ensure correct alignment during installation.

Installation note:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 minutes (start of curing)
Microencapsulated screws must not be retightened
Clean thread of nut beforehand in event of repeated use

To unscrew Torx screws (see next work step) press side cover seal (1) downward in the marked area.

Side cover seal (1) must not be damaged or soiled.

Replace side cover panel (1) if necessary.

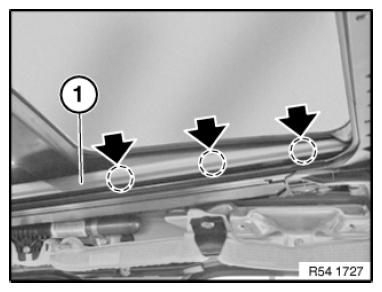

Fig 1: Locating Marks On Side Cover Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Release Torx screws (1).

Installation note:

Replace Torx screws and insert with Loctite.

Align shims to marks.

Screw down glass slide/tilt sunroof panel.

Tightening torque 54 12 01AZ .

Fig 2: Identifying Glass Slide/Tilt Sunroof Panel Torx Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: A second person is required to help in removing and installing the glass slide/tilt sunroof panel!

Lift out glass slide/tilt sunroof panel (1).

Installation note:

Tape off installation area on left and right at roof aperture with fabric adhesive tape.

Fig 3: Lifting Out Glass Slide/Tilt Sunroof Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Install glass slide/tilt sunroof panel carefully (twist in) as gasket can be damaged during installation.

Check glass slide/tilt sunroof panel for correct ALIGNMENT and adjust if necessary.

Checking the glass slide/tilt sunroof panel prior to re-installation:

Check the glass slide/tilt sunroof panel (1) for existing and correctly applied felt (2).

In the event that felt strips (2) are missing or partially loosening, perform the following operation.

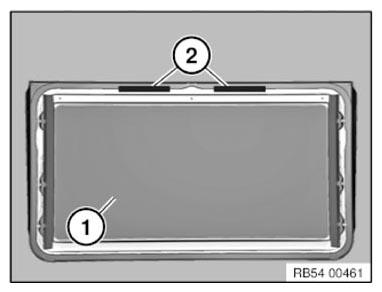

Fig 4: Checking Glass Slide/Tilt Sunroof Panel For Existing And Correctly Applied Felt

Courtesy of BMW OF NORTH AMERICA, INC.

Application of felt strips on the glass slide/tilt sunroof panel:

If necessary, remove felt strips completely.

Clean the marked areas (1) with adhesive remover.

Apply bonding agent to marked areas (part number 83 19 9 407 777).

Dimension (A) = approximately 250 mm
Dimension (B) = approximately 30 mm

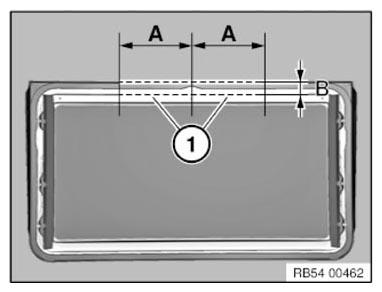

Fig 5: Identifying Felt Strips Applying Dimension On Glass Slide/Tilt Sunroof Panel
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Observe the air drying time of 15 minutes.

Apply felt strips (1) at marked areas. Apply felt strips (1) securely along the bead (2).

Felt strip: Part number 54 10 7 365 703
Distance (A) = 25 mm
Measurement (B) = 180 mm

IMPORTANT: Do not stick over bead (2). Leave a gap to the bead.
Tightly press felt strips (1) down during bonding.

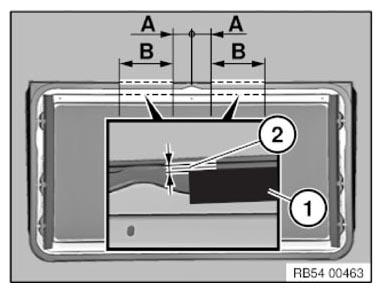

Fig 6: Identifying Felt Strips Applying Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
