54 13 090 Removing and installing/replacing wind deflector

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Open glass slide/tilt sunroof

Release screws (1) on left and right.

Detach wire spring clip (2) from wind deflector.

Fold wire spring clip (2) to the back and feed out of rail.

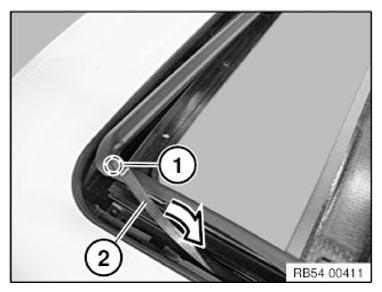

Fig 1: Folding Wire Spring Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Fold wind deflector (2) over to the rear.

Release screws (1).

Tightening torque 54 12 06AZ .

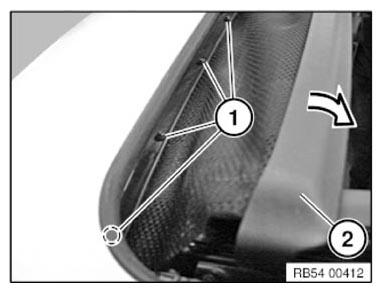

Fig 2: Folding Wind Deflector Over To Rear

Courtesy of BMW OF NORTH AMERICA, INC.
