54 10... Removing and refitting/replacing mechanism for floating headliner (panoramic sunroof removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PANORAMA GLASS ROOF

IMPORTANT: Drive carriage of drive cable (1) can possibly unhook in most rear (closed) position (turn towards the top)!
Before closing manually, press down drive carriage of drive cable (1) if required, and guide it into guide rail (2).

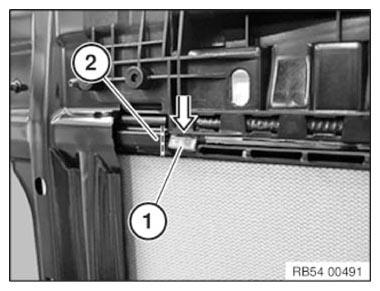

Fig 1: Pressing Down Drive Carriage Of Drive Cable

G10154016

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove wire spring clip (2).

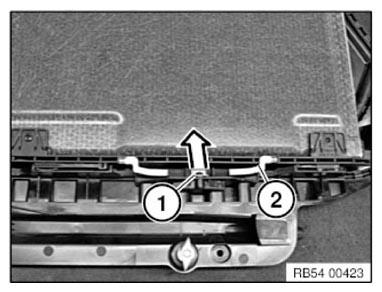

Fig 2: Removing Wire Spring Clip

G10154034

Courtesy of BMW OF NORTH AMERICA, INC.

Move the floating headlining (1) towards the rear all the way to the recess and remove towards the top.

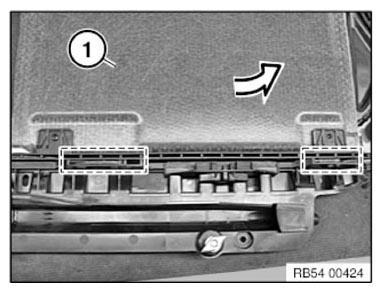

Fig 3: Moving Floating Headlining

G10154035

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mechanism of the rear floating headlining (2) must be correctly attached in the front mechanism.

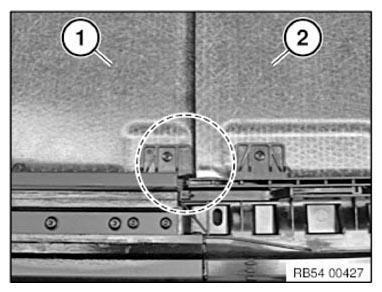

Fig 4: Identifying Rear Floating Headlining Installation Position

G10154036

Courtesy of BMW OF NORTH AMERICA, INC.

Move front floating headlining (1) to the recess and remove towards the top.

Installation note:

The notch faces opposite to the direction of travel.

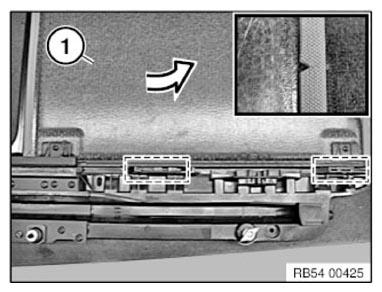

Fig 5: Moving Front Floating Headlining To Recess

G10154037

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Ensure the front mechanism is fitted correctly on the drive element.

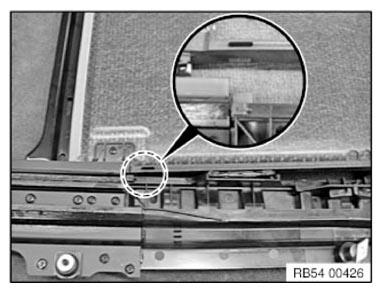

Fig 6: Identifying Front Mechanism Fitted Correctly On Drive Element

G10154038

Courtesy of BMW OF NORTH AMERICA, INC.

Remove mechanism of front floating headlining:

Release left and right screws (1).

Remove left and right mechanism (2).

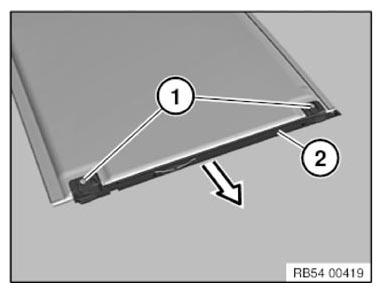

Fig 7: Removing Left And Right Mechanism

G10154039

Courtesy of BMW OF NORTH AMERICA, INC.

Remove mechanism of rear floating headlining:

Release screw (1).

Remove mechanism (2).

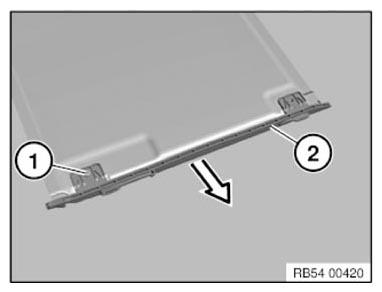

Fig 8: Removing Mechanism

G10154040

Courtesy of BMW OF NORTH AMERICA, INC.

Install mechanism of front and rear floating headlinings:

Loosely screw in all screws of mechanism for front and rear floating headlinings. Floating headlinings must still be freely moveable!
Install front and rear floating headlinings in panorama glass roof.
Move floating headlining mechanically. Completely open and then close floating headlining (stacked position). Floating headlining sets itself up in mechanism by this!
Loosely tighten all screws of mechanism for front and rear floating headlinings.
Tightening torque 54 12 04AZ .
