13 71... Removing lower sound insulation (N47 D20 O 1 with SCR)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Lower front axle support . See 31 11 506 LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) .

Release cable from cable retainer.

Release screws (1).

Remove cable clip (2).

Partially detach sound insulation on the bottom.

Fig 1: Identifying Cable Clip And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

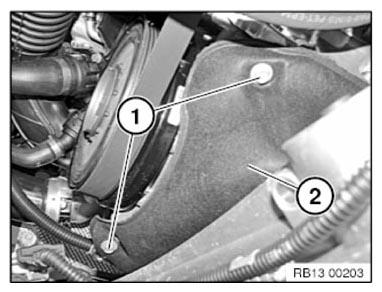

Release screws (1).

Feed out and remove sound insulation (2).

Fig 2: Identifying Sound Insulation Screws

Courtesy of BMW OF NORTH AMERICA, INC.
