13 62 650 Replacing camshaft pulse generator (N47 D20 O 1 with SCR)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove ACOUSTIC COVER
Remove REAR ACOUSTIC COVER AND SOUND INSULATION ON INJECTOR .

If necessary, detach connector from pressure regulator (1).

If necessary, unplug connector (2), injector, cyl. 4.

Unlock plug (3) from pulse generator and detach.

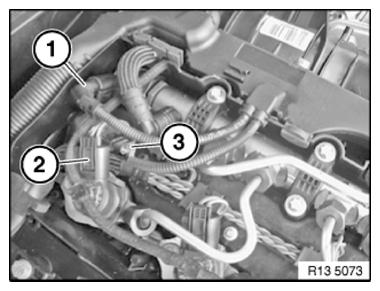

Fig 1: Identifying Pressure Regulator Connector, Injector And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 13 62 1AZ .

Remove pulse sensor.

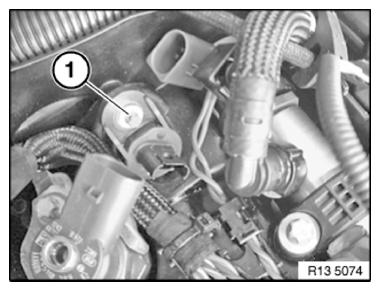

Fig 2: Identifying Pulse Sensor Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring (1). Apply a thin coat of lubricant to sealing ring for installation.

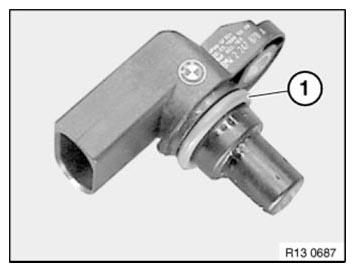

Fig 3: Identifying Pulse Generator Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Reassemble the vehicle.

Clear diagnostic fault entries from fault memory.

Check function of DDE.
