13 62 610 Replacing crankshaft pulse sensor (N47 D16/20 K/U/O/T 1)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ELECTRONICS BOX .

Pull connector (1) off pulse sensor.

Release screw (2).

Tightening torque 13 62 10AZ .

Remove pulse sensor.

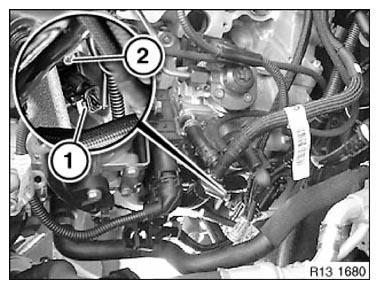

Fig 1: Identifying Pulse Sensor Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

Read out the fault memory of the DDE control unit.

Clear DDE fault memory.
