13 62 589 Replacing differential pressure sensor (N47 D20 O 1 with SCR)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove ACOUSTIC COVER

WARNING: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Unlock connector (1) and remove.

Pull off pressure hoses (2). Renew pressure hoses.

Release screw (3).

Remove differential-pressure sensor.

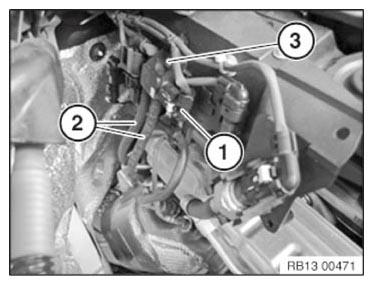

Fig 1: Identifying Pressure Hoses Connector And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored error/fault messages.

Clear diagnostic fault entries from fault memory.
