13 62 585 Replacing exhaust backpressure sensor on turbocharger (N47 D20 O 1 with SCR)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning!
Only perform this repair work on an engine that has cooled down.
Only perform this repair work on an engine that has cooled down.
Necessary preliminary tasks:
- Read out the fault memory of the DDE control unit.
- Switch off ignition.
- Remove ACOUSTIC COVER

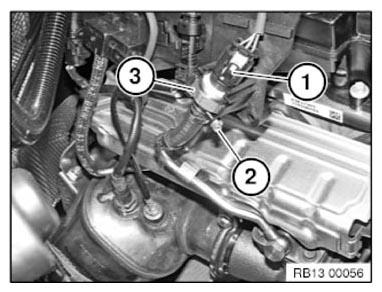

Unlock connector (1) and remove.
Release clamp (2).
Unclip the exhaust-gas temperature sensor (3) and remove from the pressure hose.
Installation note:
Immediately secure pressure hose back to the hose clamp on the exhaust back pressure sensor.
Installation note:
After replacing the exhaust back pressure sensor, carry out an adaptation using the "Exhaust back pressure sensor upstream of exhaust turbocharger" diagnosis system.
Check stored error/fault messages.
Clear diagnostic fault entries from fault memory.
