13 62 560 Removing and refitting/replacing the hot-film mass air flow sensor (N47 D20 O 1 with SCR)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out the fault memory of the DDE control unit.
Switch off ignition.
Remove ACOUSTIC COVER

Unlock connector (1) and remove.

Unfasten screws (2).

Tightening torque 13 62 12AZ .

Remove the hot film air mass meter.

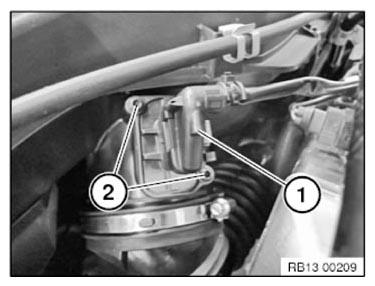

Fig 1: Identifying Hot Film Air Mass Meter Connector And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Reset the adaptation settings for the mass air flow system using the BMW diagnosis system.

NOTE: Check stored fault messages.
Clear diagnostic fault entries from fault memory.
