513040 Device AM

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For pressing down the glued window glass

Consisting of:

1 = 0492615 Pipe

NOTE: (Transverse pipe)

2 = 0492616 Gauge

NOTE: (Positioning eyes)

3 = 0492617 Screw

NOTE: (Star bolt)

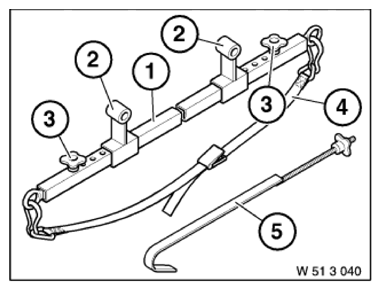

Fig 1: Device (513040)

Courtesy of BMW OF NORTH AMERICA, INC.

4 = 0492618 Belt

NOTE: (Lashing strap)

5 = 0492619 Hook

NOTE: (Drawing hook)
