31 21 180 Replacing bearing for front wheel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 2 230
11 8 580

Necessary preliminary tasks:

Remove brake disc . See 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS or 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS (BREMBO) .

Slacken nut (1).

Tightening torque 31 31 3AZ .

Pull out screw.

Installation note:

Replace nut (1).

Bolt head points in direction of travel.

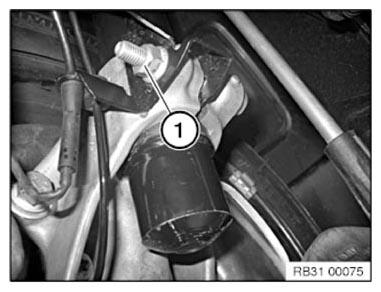

Fig 1: Identifying Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.

To release wheel bearing screw connection:

Expand swivel bearing with special tool 31 2 230.
Pull swivel bearing approx. 5 cm towards the bottom.

Fig 2: Pulling Swivel Bearing
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep press fit of swivel bearing and spring strut in lower area clean and free from oil and grease.

Align swivel bearing (1) to positioning pin (2) on the rear side of the spring strut along the gap and slide all the way in.

Fig 3: Aligning Swivel Bearing To Positioning Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) with special tool 11 8 580 .

Tightening torque 31 21 1AZ .

Press off wheel bearing from swivel bearing using a suitable tool.

Installation note:

Replace microencapsulated screws.

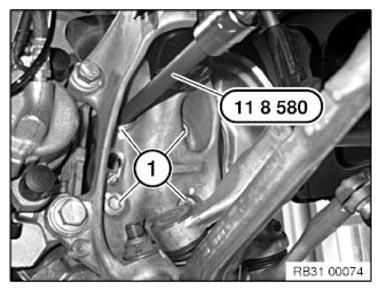

Fig 4: Releasing Front Wheel Screws Using Special Tool (11 8 580)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep contact surface (1) of swivel bearing and wheel bearing clean and free from oil and grease.

When reusing, all the threads on the wheel bearing must be recut.

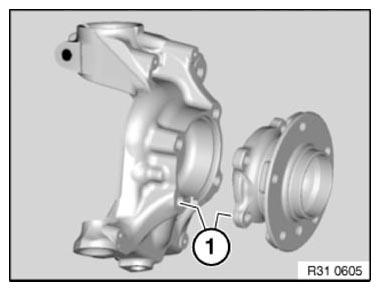

Fig 5: Identifying Contact Surfaces Of Swivel Bearing And Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Remove FRONT WHEEL .

If necessary, remove visual protection cap (1).

Fig 1: Removing Visual Protection Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar bolt (1), press brake pedal to floor for this purpose.

Tightening torque 31 60 2AZ .

Fig 2: Identifying Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Renew collar bolt (1) and compression spring (2).
Pay attention to installation position of compression spring (2).
Keep collar bolt and spur toothing of bearing/propeller shaft clean and free of grease
Follow installation note of the spur gearing.

Fig 3: Identifying Collar Bolt And Compression Spring
Courtesy of BMW OF NORTH AMERICA, INC.

Remove brake disc . See 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS or 34 11 220 REMOVING AND INSTALLING/REPLACING BOTH FRONT BRAKE DISCS (BREMBO) .

NOTE:

Check brake pad and replace if necessary!

Press output shaft on swivel bearing to one side slightly and release screws (1).

Tightening torque 31 21 1AZ .

Remove bearing.

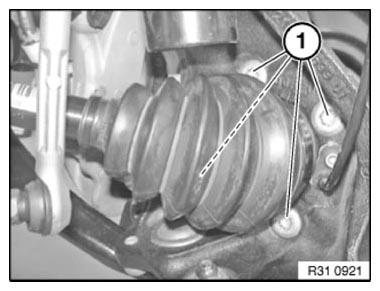

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace screws.
Keep contact surface (2) of wheel bearing and swivel bearing clean and free from grease.

Fig 5: Identifying Wheel Bearing And Swivel Bearing Contact Surfaces
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Note on installation for spur gearing must be observed without fail!

Fig 6: Pressing Bearing Spur Gear And Output Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Spur gearing of bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth)!
Tighten collar bolt and compression spring by hand.
Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.
Once a form-fit has been ensured, tighten to final torque.
Tightening torque 31 60 2AZ .
