61 11... Installing repair cable for reversing camera

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .

NOTE: Work is shown by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.

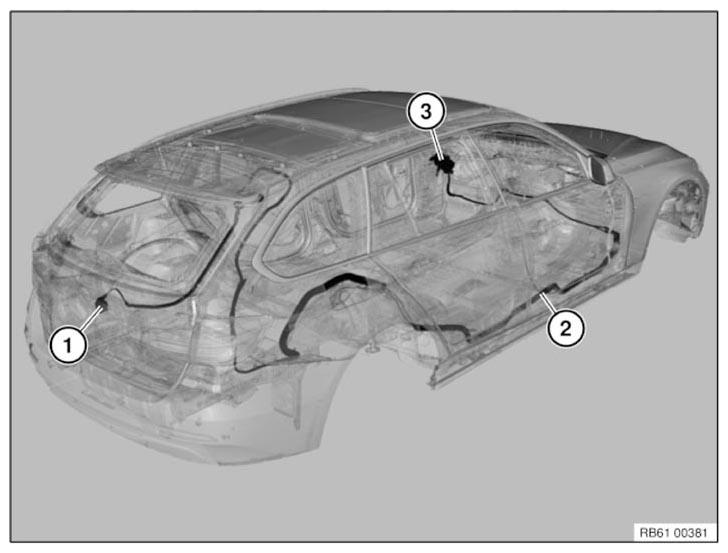

Fig 1: Identifying Reversing Camera, Wiring Harness And TRSVC Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim panels.

Lay repair cable from reversing camera (1) along wiring harness (2) up to TRSVC control unit (3, middle slot) and secure sufficiently.

Lay any repair cable overlength under carpet.

After successful completion of function check, detach start and end of faulty cable at first mounting point.
