61 71 030 Removing and installing/renewing all washer jets of windscreen washer system

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unlock hose coupling (1) in direction of arrow and detach washer fluid line (2).

Unfasten plug connection (3) and disconnect.

Turn connector with holder (4) counterclockwise slightly and remove in downward direction.

Fig 1: Identifying Hose Coupling, Washer Fluid Line, Plug Connection, And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Press all washer jets (1) in direction of arrow upwards and remove.

Open all brackets and remove washer fluid line.

Fig 2: Pressing Washer Jets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) must not be missing or damaged.

Check washer jet setting.

Top up WINDOW WASHER SYSTEM .

Fig 3: Identifying Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Washer jets are preset by the manufacturer, do not change this setting if possible.
Setting can be changed in a specific case for a customer complaint.
Changes in the setting must take into account the possible driving situations (high/low speed; with/without washing additive) and must be performed with care.

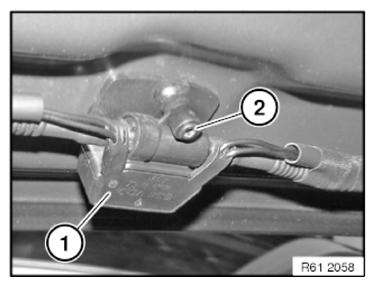

If necessary, adjust left/right washer jet (1) by using screw (2).

Fig 4: Identifying Washer Jet And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
