61 62 060 Removing and installing/replacing rear wiper motor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR REAR LID
Close tailgate and open rear window

Unfasten plug connection (1) and disconnect.

Release screws (2) and remove the wiper motor (3) from the tailgate.

Tightening torque 61 62 4AZ .

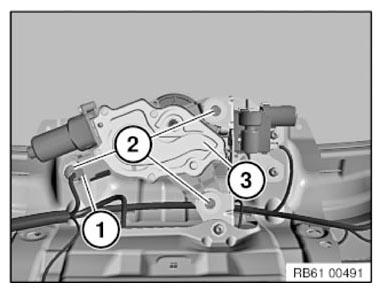

Fig 1: Identifying Wiper Motor, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
