61 31... Remount operating unit of the additional seat function (screwed version)

Necessary preliminary tasks:

• REMOVE OPERATING UNIT OF ADDITIONAL SEAT FUNCTION

Removal:

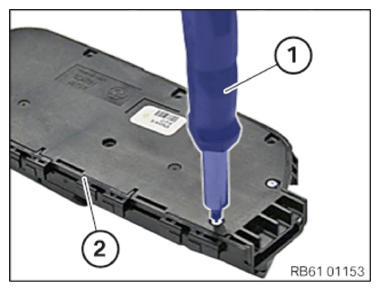

Release all screws on the operating unit (2) using screwdriver (1).

Fig 1: Releasing Screws From Operating Unit Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

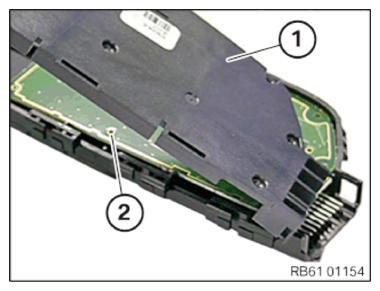

Remove the rear panel (1) and feed out the printed circuit board (2).

Fig 2: Identifying Rear Panel And Printed Circuit Board

Courtesy of BMW OF NORTH AMERICA, INC.

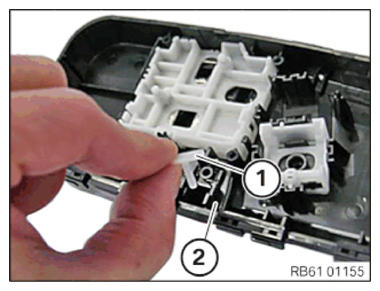

Take out the pressure pin (1) from the operating unit (2).

Fig 3: Identifying Operating Unit And Pressure Pin

Courtesy of BMW OF NORTH AMERICA, INC.

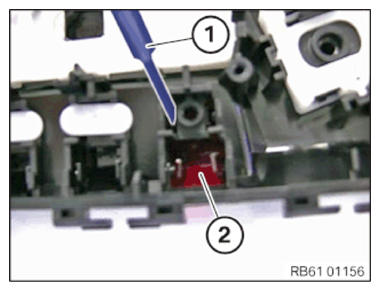

Unclip button (2) with the help of screwdriver (1) and remove.

Fig 4: Removing Button With Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

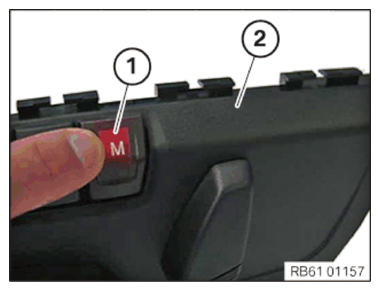

Add the button (1) to the operating unit (2) and lock using pressure.

Fig 5: Installing Button To Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

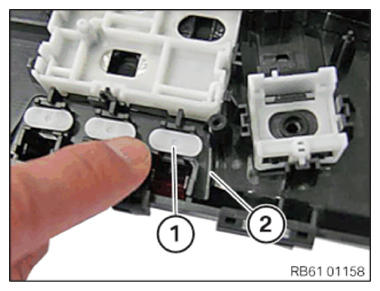

Add pressure pin (1) to the operating unit (2).

Fig 6: Installing Pressure Pin To Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Add the printed circuit board (2) and then the rear panel (1) to the operating unit.

Fig 7: Identifying Rear Panel And Printed Circuit Board

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all screws on the operating unit (2) with the help of screwdriver (1).

Fig 8: Releasing Screws From Operating Unit Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Remove operating unit of additional seat function
