61 31 299 Removing and installing/replacing clutch switch module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove TRIM PANEL FOR PEDAL MECHANISM .

NOTE: For purposes of clarity, clutch master cylinder (2) is shown removed.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

Unlock plug (4) and disconnect from housing (3).

Fig 1: Disconnecting Plug From Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clutch switch module is secured against incorrect installation.

Clutch switch module must snap audibly into place.

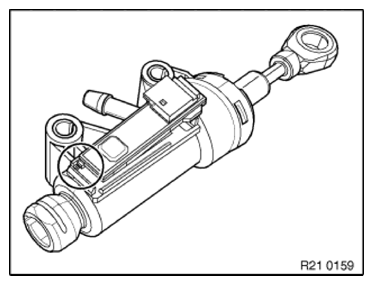

Fig 2: Identifying Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.
