61 31 198 Replace controller chrome ring
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

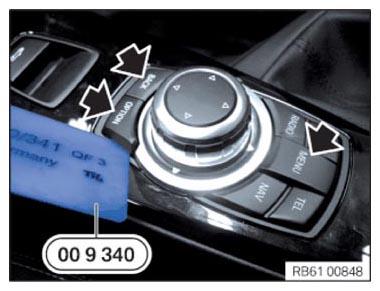

Lever out "OPTION", "BACK", "MENU" buttons with special tool 00 9 340
.
Courtesy of BMW OF NORTH AMERICA, INC.

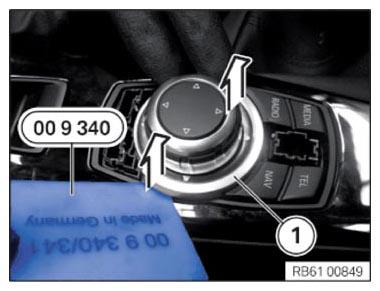

Lever out chrome ring (1) from latch mechanisms with special tool 00 9 340
and remove upwards.
Installation note:
Retaining lugs on controller must not be damaged.
Courtesy of BMW OF NORTH AMERICA, INC.
Check function of the controller.
