Procedure steps

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Risk of damage (scratches)

Tools and sharp-edged components can cause scratches.

Protect working area.
Handle tools and components carefully.

Remove trim for selector lever:
- Partially fit special tool 00 9 340 as shown in illustration.
- Lift trim for selector lever (1) all around and remove upwards.
- If necessary, unlock associated plug connection and disconnect.

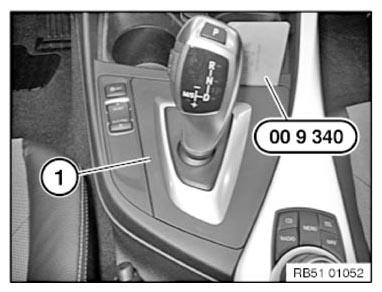

  Fig 1: Removing Selector Lever Trim
  Courtesy of BMW OF NORTH AMERICA, INC.
Removing the operating unit for the center console:
- Adhere to following procedure:
  1. Reach under front section of operating unit for the center console (1).
  2. Press front latch mechanism in direction of arrow and simultaneously raise operating unit for the center console (1) towards top.
  3. Disconnect associated plug connection and remove operating unit for the center console (1).

    Fig 2: Removing/Installing Operating Unit For Center Console
    Courtesy of BMW OF NORTH AMERICA, INC.
Installing the operating unit for the center console:
- Clip in the operating unit for the center console.

  Fig 3: Removing/Installing Operating Unit For Center Console
  Courtesy of BMW OF NORTH AMERICA, INC.
Install trim for selector lever:
IMPORTANT:
Latch mechanisms, guides and mounting elements must not be damaged or missing.
- Check latch mechanisms for damage, if necessary replace trim for selector lever.
- Clip in trim for selector lever (1).

  Fig 4: Removing Selector Lever Trim
  Courtesy of BMW OF NORTH AMERICA, INC.
