61 31 137 Removing and installing/renewing USB interface connecting socket

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove GLOVE BOX WITH HOUSING

NOTE: Similar to graphic.

Release retaining clamps (1).

Push USB interface connecting socket (2) to the front from glove box (3).

Installation note:

Retaining clips (1) must not be damaged.

Make sure USB interface connecting socket (2) is correctly seated.

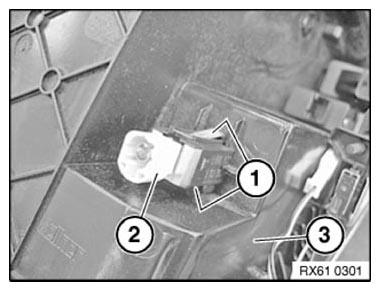

Fig 1: Identifying USB Interface Connecting Socket, Glove Box And Retaining Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
