61 31 122 Removing and installing/replacing trailer tow hitch switch
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Open flap of left luggage compartment trim panel

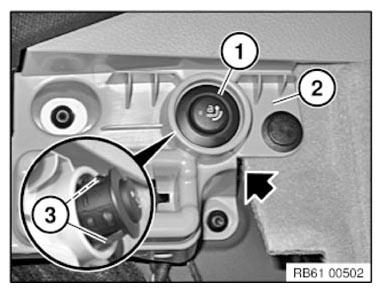

Grasp rear trim panel (2).
Press switch of trailer tow hitch (1) out of trim panel (2).
Disconnect plug connection behind and remove switch (1).
Installation note:
Make sure switch of trailer tow hitch (1) is correctly fitted in trim panel (2).
Latches (3) on switch of trailer tow hitch (1) must not be missing or damaged
