61 31 117 Remove and install/replace switch for power window driver's side

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Removing the switch trim on left or right front door trim panel:
IMPORTANT:
Risk of damage (scratches)

Tools and sharp-edged components can cause scratches.
- Protect working area.
- Handle tools and components carefully.
- With a suitable tool, (1) release the latch mechanism (2) of the switch trim (3) in direction of arrow.
- Unclip switch trim (3) from door trim panel towards front/top.
- Disconnect plug connection and remove the switch trim (3).

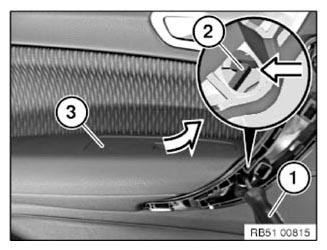

  Fig 1: Releasing Latch Mechanism Of Switch Trim With Suitable Tool
  Courtesy of BMW OF NORTH AMERICA, INC.
Remove power window switch:
IMPORTANT:
Risk of damage (scratches)

Tools and sharp-edged components can cause scratches.
- Protect working area.
- Handle tools and components carefully.
- Release latch mechanisms (1) on both sides.
- Remove switch (2) from cover (3).

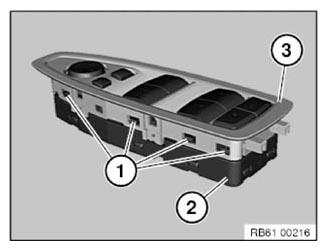

  Fig 2: Identifying Latch Mechanisms, Switch And Cover
  Courtesy of BMW OF NORTH AMERICA, INC.
Install power window regulator switch:
IMPORTANT:
Risk of damage (scratches)

Tools and sharp-edged components can cause scratches.
- Protect working area.
- Handle tools and components carefully.
- Position cover (3) on switch (2).
- Engage latch mechanisms (1) on both sides.

  Fig 3: Identifying Latch Mechanisms, Cover And Switch
  Courtesy of BMW OF NORTH AMERICA, INC.
Installing the switch trim on left or right front door trim panel:
IMPORTANT:
Risk of damage (scratches)

Tools and sharp-edged components can cause scratches.

Tools and sharp-edged components can cause scratches.
- Protect working area.
- Handle tools and components carefully.
IMPORTANT:
Latch mechanisms, guides and mounting elements must not be damaged or missing.
- Check latch mechanism (1), retaining clip (2) and guide (3) of the switch unit (4) for damages.
  IMPORTANT:
  The switch trim must be replaced if the latch mechanisms, clamps or guides are damaged.

  For more information see: REMOVING AND INSTALLING/REPLACING POWER WINDOW SWITCH (DRIVER'S SIDE)

  Fig 4: Identifying Switch Unit, Latch Mechanism, Retaining Clip And Guide
  Courtesy of BMW OF NORTH AMERICA, INC.
- Connect the plug connection.
- Position and clip in switch.
