61 31 014 Removing and installing/replacing Start/Stop switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

NOTE: When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Pry out Start/Stop switch (1) at the marked retaining points using special tool 00 9 325 .

Disconnect associated plug connection and remove Start/Stop switch (1).

Fig 1: Prying Out Start/Stop Switch Using Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

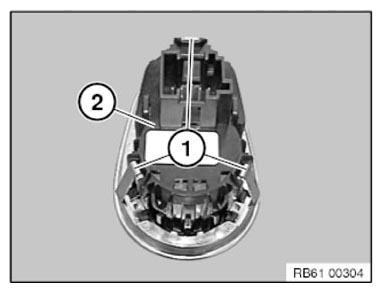

Retaining clips (1) on Start/Stop switch (2) must not be bent or damaged.

Fig 2: Identifying Retaining Clips On Start/Stop Switch

Courtesy of BMW OF NORTH AMERICA, INC.
