61 35 975 Removing and installing/replacing bumper aerial for Comfort Access
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Work shown on the F30 by way of example, deviations in detail are possible in other models.
Depending on the engine version:
If necessary, release screws (1) on cover (2) and remove cover (2).
NOTE:
Bumper aerial is located on reinforcement of rear bumper panel.
Release screws (1) on bumper panel at bottom rear.
NOTE:
Shown with bumper panel removed for purposes of clarity.

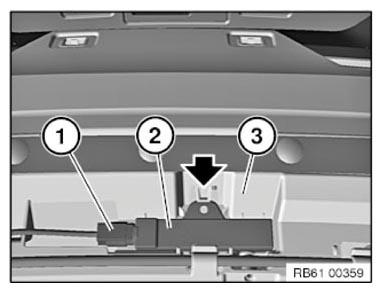

Disconnect plug connection (1).
Reach between reinforcement and bumper panel.
Release latch mechanism (arrow) on reinforcement (3) and feed out bumper aerial (2).
Installation note:
Make sure bumper aerial (2) is correctly fitted on reinforcement (3).
