61 35 970 Removing and installing/replacing luggage compartment aerial for Comfort Access

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Raise luggage compartment floor trim panel (1) at handle (2) and remove in direction of arrow.

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Open storage tray (1) in luggage compartment floor at front in direction of arrow and remove.

Release expanding rivet (2) and lift trim panel (3) slightly

Unlock plug connection (4) and disconnect.

Unlock bracket (5) and remove luggage compartment aerial (6).

Installation note:

Make sure luggage compartment aerial (6) is seated correctly in bracket (5).

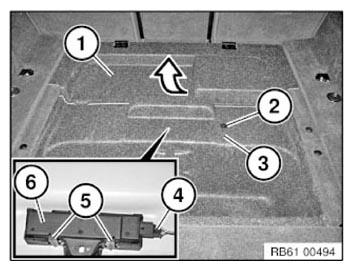

Fig 2: Identifying Storage Tray, Expanding Rivet, Trim Panel, Plug Connection, Luggage Compartment Aerial, And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
