61 35 001 Removing and installing (replacing) trailer module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT TRIM PANEL AT SIDE REAR RIGHT

Unfasten plug connection (1) and disconnect.

Unlock retaining lugs (2).

Pull trailer module (3) out of holder.

Installation note:

Make sure trailer module (3) is correctly engaged in holder.

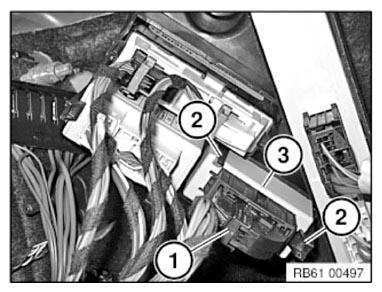

Fig 1: Identifying Trailer Module, Retaining Lugs And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
