36 11 105 Removing and installing RDC (Tire Pressure Control) control unit (LOW COST)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE
(ESD protection).
Necessary preliminary tasks:
- Raise vehicle.

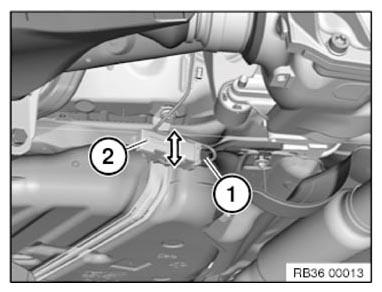

Disconnect plug connection (1).
Press retaining tabs (2) apart as indicated by arrow.
Pull out TPC control unit.
Replacement:
- Carry out programming/encoding
