11 23 010 Removing and installing/replacing vibration damper (N20, N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260
11 8 180
22 2 742

Necessary preliminary tasks:

Remove DRIVE BELT .
Remove underbody protection at front and rear.

NOTE: Engine removed:

Block crankshaft with special tool 11 9 260 .

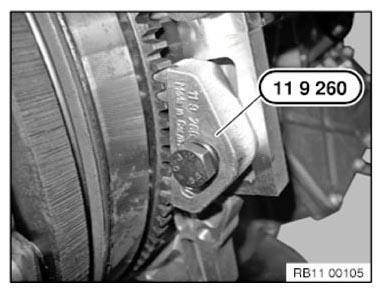

Fig 1: Dual-Mass Flywheel With Special Tool (11 9 260)

G09920000

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Engine installed with manual transmission:

Block crankshaft with special tool 11 8 180 .

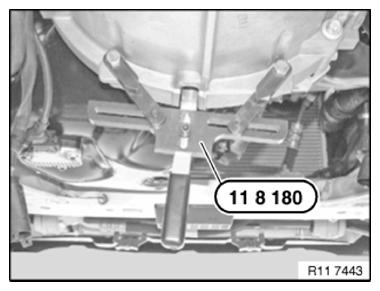

Fig 2: Installing Block Crankshaft With Special Tool (11 8 180)

G09844995

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Engine installed with automatic transmission:

Block crankshaft with special tool 22 2 742.

Feed in special tool, slide screw forward and tighten.

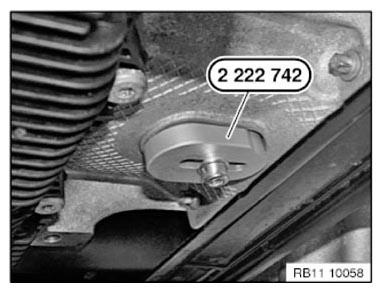

Fig 3: Installing Block Crankshaft With Special Tool (2 222 742)

G09920504

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove vibration damper.

Tightening torque: 11 23 1AZ .

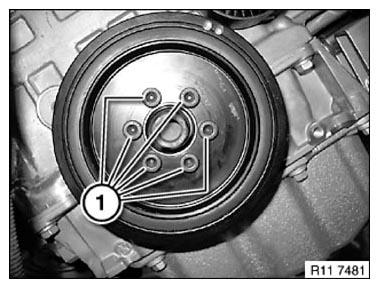

Fig 4: Vibration Damper And Screws

G09920505

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
