11 36 655 Removing and installing/replacing both actuators (N20, N26)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
It is essential to observe conditions of absolute cleanliness when removing and installing the intake and exhaust actuators.
Possible malfunction if there is dirt contamination in the valves:
Possible malfunction if there is dirt contamination in the valves:
- Irregular operation
- OBD fault entry
- Exhaust gas emission characteristics.
- Low engine performance
Necessary preliminary work:
- Remove ACOUSTIC COVER
- Remove INTAKE SILENCER HOUSING

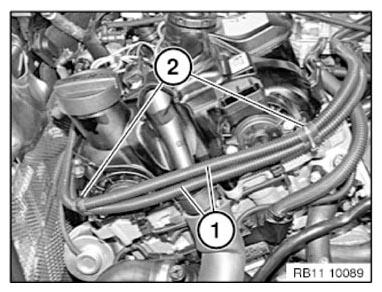

Detach lines (1) from retaining tabs (2).

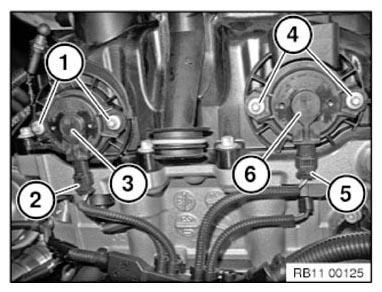

Disconnect plug connection (5) on intake actuator (6).
Release screws (4).
Tightening torque: 11 36 2AZ .
Remove intake actuator (1) to the front.
Disconnect plug connection (2) on exhaust actuator (3).
Release screws (1).
Tightening torque: 11 36 2AZ .
Remove exhaust actuator (3) to the front.
Assemble engine.
Check function of DME.
