11 65 310 Removing and installing/replacing blow-off valve (N20)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The module consists of exhaust turbo charger and exhaust manifold.

Necessary preliminary tasks:

Remove front right wheel (all-wheel drive vehicle only)
Remove clean air pipe.
Drain coolant.
Remove expansion tank.
Remove pedestrian protection at bottom (without USA).
Remove charge air cooler.
Remove the catalytic converter.
Drain ENGINE OIL .
Remove EXHAUST TURBOCHARGER .

Release screws (1).

Tightening torque: 11 65 6AZ

Remove blow-off valve (2).

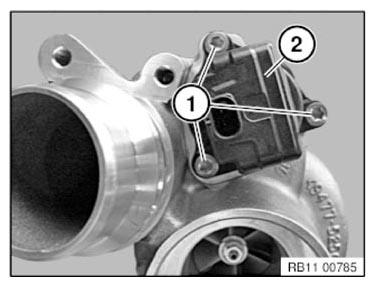

Fig 1: Blow-Off Valve And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean the threads and sealing surfaces (2).

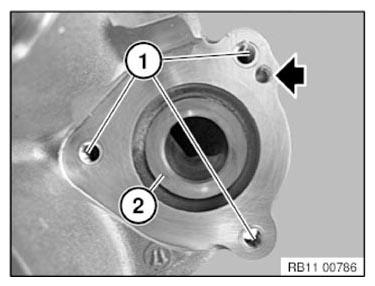

Fig 2: Threads And Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Observe BMW Diagnostics System instruction.

Carry out BMW leak test for intake system.
