11 61 730 BMW leakage test for air intake system (N20/N26)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Excess pressure and vacuum lines are identified by the size of the seals and color-coded Red and Blue and must not be mixed up with each other.
Build up pressure with Blue color.
Generate vacuum pressure with Red color.
Mixing up the functions will result in damage to the engine.

Necessary preliminary tasks:

Prepare BMW diagnosis system.
Start diagnosis program.
1. Power train
2. Engine electronics
3. Air supply
4. Charging pressure control
or Perception

or Lack of power

Diagnosis instruction Check air intake system for leaks .

Pressure measurement:

Prepare BMW diagnosis system on diagnosis unit.

Fit connector (81 29 2 158 850) on diagnosis auxiliary device (81 29 0 426 464).
Connect pressure hose 2 201 924 on diagnosis auxiliary device (81 29 0 426 464).
Overpressure connection (Blue).
Connect 12 V cable (3), positive battery terminal and negative terminal.
Connect 12 V cable (4), positive battery terminal and negative terminal.

Fig 1: Measuring Pressure
Courtesy of BMW OF NORTH AMERICA, INC.

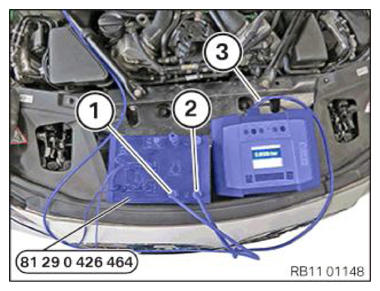

Insert the blue overpressure lines on the diagnosis auxiliary device 0 426 464 on the connector (1).

Connect IMIB (3) with connector (2) of the auxiliary diagnosis device using pressure hose 2 201 924.

Graphic N63.

Fig 2: Inserting Blue Overpressure Lines On Diagnosis Auxiliary Device (0 426 464) On Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect clean air pipe at intake silencer housing.

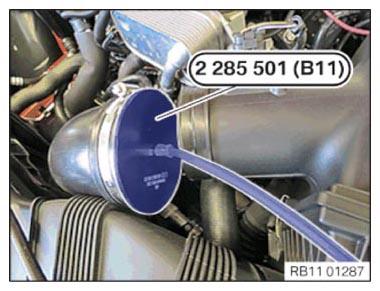

Screw seal plug 2 285 501 (B11) air-tight onto clean air pipe.

Connect the auxiliary diagnosis device with the seal plug by means of the blue pressure line.

Fig 3: Screwing Seal Plug (2 285 501) (B11) Air-Tight Onto Clean Air Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Diagnosis instruction Check turbocharging path with charge air cooler for leaks.

Fig 4: Snap Fastener On Exhaust Turbocharger

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock snap fastener (1) on exhaust turbocharger.

Disconnect pressure hose at exhaust turbocharger.

NOTE: Shown with engine/cooling package removed for better overview.

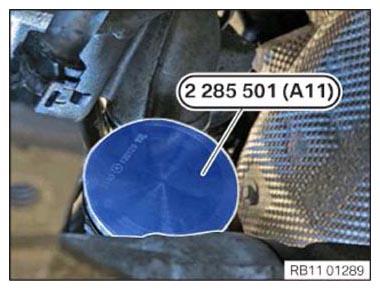

Close off pressure hose air-tight to the charge air cooler with the seal plug 2 285 501 (A11).

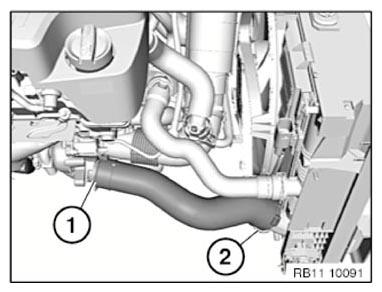

Fig 5: Closing Pressure Hose Air-Tight To Charge Air Cooler With Seal Plug

Courtesy of BMW OF NORTH AMERICA, INC.

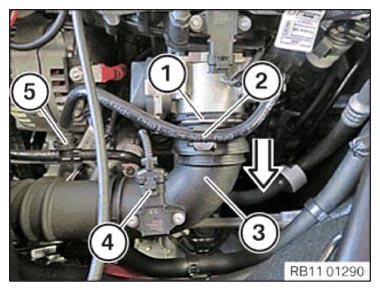

Unlock retaining clip (1) on the throttle valve pressure hose.

Unclip tank ventilation line (2) from bracket.

Unlock and disconnect plug connection (4) on charging pressure sensor.

Undo connecting coupling (5) of the tank ventilation line.

Fig 6: Removing Retaining Clip On Throttle Valve Pressure Hose

Courtesy of BMW OF NORTH AMERICA, INC.

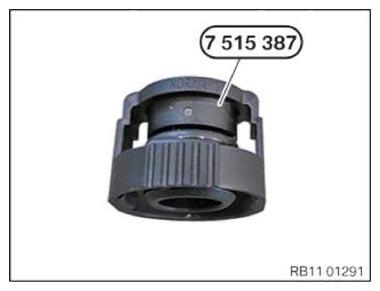

Required seal plug.

Part Number 13 90 7 515 387

Fig 7: Seal Plug (7 515 387)

Courtesy of BMW OF NORTH AMERICA, INC.

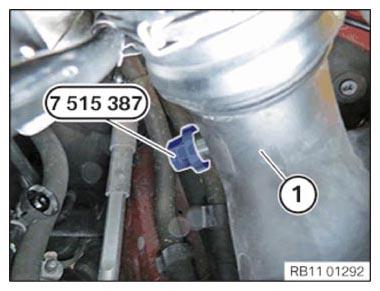

Unlock tank ventilation line at the pressure pipe and close off with seal plug 7 515 387.

Fig 8: Seal Plug (7 515 387)

Courtesy of BMW OF NORTH AMERICA, INC.

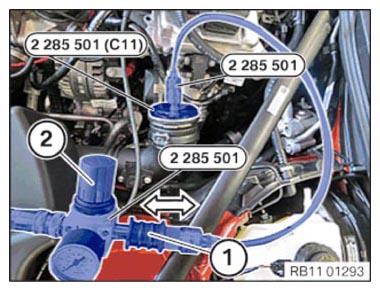

Prepare pressure gauge from the tool set 2 285 501 with pressure hose.

Close off pressure pipe with seal plug 2 285 501 (C11).

Set pressure gauge to 1 bar with adjusting screw.

Close off sliding piece (1) on pressure gauge in direction of arrow.

Fig 9: Closing Pressure Pipe With Seal Plug (2 285 501) (C11)

Courtesy of BMW OF NORTH AMERICA, INC.

Diagnosis instruction Leak detection with BMW smoke tester.

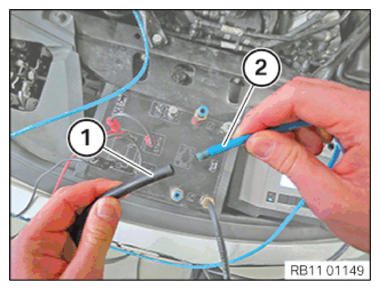

Disconnect the overpressure line (2) on the diagnosis auxiliary device.

Connect pressure line (1) from the BMW smoke tester 2 353 954 with the overpressure line (2).

Fig 10: Disconnecting Overpressure Line On Diagnosis Auxiliary Device

Courtesy of BMW OF NORTH AMERICA, INC.

Put the BMW smoke tester 2 353 954 into operation according to the operating instructions.

Fig 11: BMW Smoke Tester (2 353 954)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow diagnosis instruction.
