Procedure steps

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Remove intake silencer housing
Unlock connector 1 on hot film air mass meter and pull off.

Unfasten clamp 2.

Unclip Bowden cable 3 from intake silencer housing.

Pull off intake silencer housing 4 upward out of rubber mounts 5 and remove.

Fig 1: Removing Intake Silencer Housing
Courtesy of BMW OF NORTH AMERICA, INC.
Remove right charge-air line

Fig 2: Removing Right Charge-Air Line
Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten clamp 1.

Pull off pressure hose 2 in direction of arrow.

Install right charge air duct

Loosen the lock 1.

Pull off pressure hose 2 in direction of arrow.

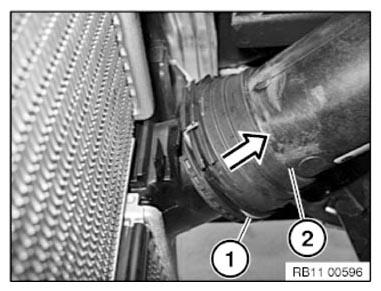

Fig 3: Pulling Pressure Hose

G10166273

Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL INFORMATION

Make sure that the connections are locked correctly. The locks must engage audibly.

Mount charge air line 2 in direction of arrow onto the charge air cooler.

Lock 1 must engage audibly.

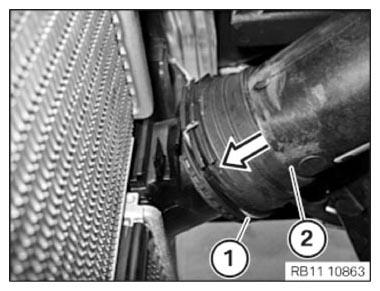

Fig 4: Installing Charge Air Line Onto Charge Air Cooler

G10166274

Courtesy of BMW OF NORTH AMERICA, INC.

Mount charge air line 2 in direction of arrow.

Tighten clamp 1.

TIGHTENING TORQUES SPECIFICATIONS

Charge air guide to charge air cooler and throttle body
Clamp
3 Nm

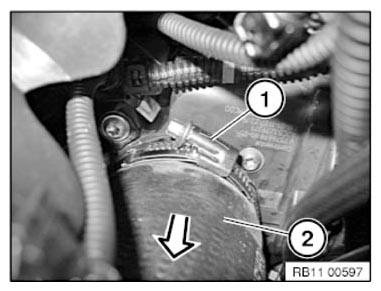

Fig 5: Installing Charge Air Line

G10166275

Courtesy of BMW OF NORTH AMERICA, INC.

Install intake silencer housing

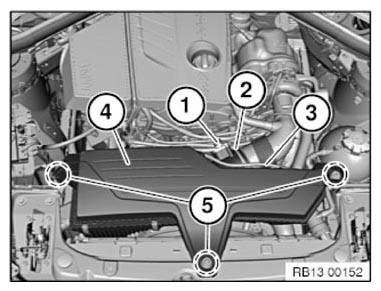

Fig 6: Installing Intake Silencer Housing

G10166271

Courtesy of BMW OF NORTH AMERICA, INC.

Press intake silencer housing 4 downward into the rubber mounts 5.

Clip in Bowden cable 3 on the intake silencer housing.

Tighten clamp 2.

TIGHTENING TORQUES SPECIFICATIONS

Clean air pipe to intake silencer housing
Clamp
3 Nm

Connect connector 1 at the hot film air mass meter.
