11 14 151 Replacing rear crankshaft seal (N47)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

DRAIN ENGINE OIL .
REMOVE FLYWHEEL .
Remove radial shaft seal with a suitable tool.

IMPORTANT: The radial shaft seal must be installed dry.
Do not use engine oil or lubricant.

Position special tool 11 8 815 on crankshaft.

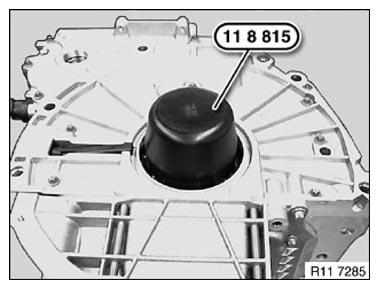

Fig 1: Positioning Special Tool (11 8 815) On Crankshaft

G09919818

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 11 8 815 to fit the radial shaft seal (1) in the direction of the arrow just up to gear case cover and position.

Remove special tool 11 8 815 .

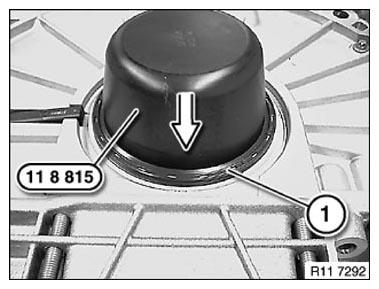

Fig 2: Fitting Radial Shaft Seal Using Special Tool (11 8 815)

G09919636

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten special tool 11 8 811 with special tool 11 8 812 on the crankshaft.

Position radial shaft seal (1).

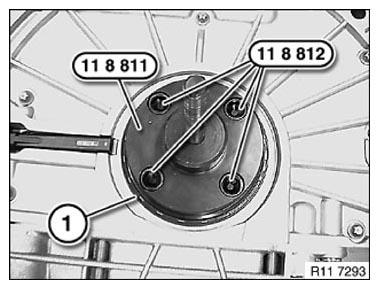

Fig 3: Positioning Radial Shaft Seal

G09919820

Courtesy of BMW OF NORTH AMERICA, INC.

Slide on special tool 11 8 813 .

Screw down special tool 11 8 314.

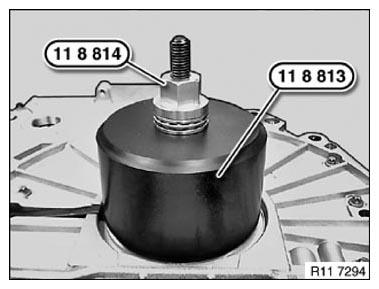

Fig 4: Special Tool (11 8 813)

G09919821

Courtesy of BMW OF NORTH AMERICA, INC.

Press in radial shaft seal with special tool 11 8 813 .

Screw in special tool 11 8 813 up to gear case cover.

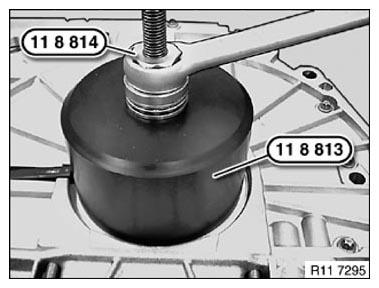

Fig 5: Screwing Special Tool (11 8 813) To Gear Case Cover

G09919822

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools 11 8 810 .

Assemble engine.

Check engine for leak tightness.
